Tri Viet is committed to providing stamping molds with high precision, smooth and beautiful surfaces, serving many different industries such as automobiles, electronics, household appliances, construction, etc. With flexible production capabilities, Tri Viet can meet both large batch production and on-demand orders.

"Mold" is a structure, template or shape to products of the desired size and shape.

"Stamping" is the process of placing material (usually metal) into a die and then applying pressure to the material to the desired shape or surface treatment.

"Stamping mold" is the use of a mold to place material and apply pressure to a previously designed product or component. This is a common method in the production of metal products.

Stamping mold processes refer to the manufacturing processes that involve the use of stamping molds to shape and form materials, typically metal sheets or components. These processes are commonly used in various industries for mass production of parts and components with precise dimensions and shapes.

The stamping mold processes involve the following steps:

Designing the stamping mold: The first step is to design the stamping mold according to the desired shape and specifications of the part to be produced. The mold will consist of upper and lower dies that work together to shape the material.

Material preparation: The material, usually metal sheets or strips, is prepared for stamping. It is loaded into the stamping machine where it will be fed into the mold.

Stamping operation: The material is fed into the stamping mold, and pressure is applied to form it into the desired shape. This can be a single operation or a series of operations depending on the complexity of the part.

Ejection: Once the part is formed, it is ejected from the mold. Additional operations such as trimming, piercing, or bending may be performed if needed.

Quality control: The stamped part is inspected for quality and dimensional accuracy. Any defects or imperfections are rectified before proceeding to the next step.

Finishing operations: After the part has been stamped, it may undergo additional finishing operations such as deburring, cleaning, painting, or coating to meet the final requirements.

Overall, stamping mold processes are essential for producing a wide range of metal components used in industries such as automotive, aerospace, electronics, and appliances. These processes are efficient, cost-effective, and capable of producing high-volume production runs with consistent quality.

There are several types of stamping molds used in manufacturing processes to shape and form materials. Some common types of stamping molds include:

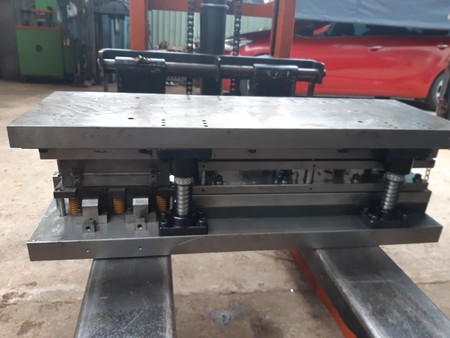

Progressive Die: Progressive dies are used for high-volume manufacturing processes. They consist of multiple stations, each performing a different operation on the material as it moves through the die. Progressive dies can perform complex stamping operations in a single feeding process.

Transfer Die: Transfer dies are similar to progressive dies but instead of the material moving through the die, it is transferred from one station to another via mechanical arms or conveyors. Transfer dies are used for parts that require multiple operations but are too complex for a progressive die.

Compound Die: Compound dies are used for stamping parts with intricate shapes and features. These dies have multiple functions, such as cutting, bending, and forming, all in a single operation.

Blanking Die: Blanking dies are used to cut flat parts out of sheet metal. They are typically used to produce parts with simple shapes and profiles.

Drawing Die: Drawing dies are used to form sheet metal into a hollow or cup-shaped part. The material is drawn into the die cavity using a punch to the desired shape.

Forming Die: Forming dies are used to bend, stretch, or deform sheet metal to complex shapes and contours.

Coining Die: Coining dies are used to precision parts with tight tolerances. They are often used for high-precision components in industries such as electronics and medical devices.

These are just a few examples of the different types of stamping molds used in manufacturing processes. The type of die used depends on the specific requirements of the part being produced, including shape complexity, volume of production, and material properties.
